Cessna Aircraft Company
Cessna 188 AG Wagon
Manufactured 1966–1983
Introduction date 1966
First flight February 19, 1965
Reims/Cessna
188 AG Agricultural
 |
|
| General information | |
|---|---|
| Type | Light agricultural airplane |
| Manufacturer | Cessna Aircraft Company |
| Number built | 3,976 |
| History | |
| Manufactured | 1966–1983 |
| Introduction date | 1966 |
| First flight | February 19, 1965 |
| Developed into | Aviones de Colombia AC-05 Pijao |
.
History Cessna Aircraft Company
Cessna 188 AG Wagon Series Agricultural
Manufactured 1966–1983
Introduction date 1966
First flight February 19, 1965
The Cessna 188 is a family of light agricultural aircraft produced between 1966 and 1983 by the Cessna Aircraft Company. The various versions of the 188 included the AGwagon, AGpickup, AGtruck and AGhusky, along with the AGcarryall variant of the Cessna 185 Skywagon, and constituted Cessna's line of agricultural aircraft.
Development
In the early 1960s, Cessna decided to expand their already wide line of light aircraft by entering the agricultural aircraft market. They surveyed pilots and operators of other brands of agricultural aircraft to see what features and capabilities these operators were looking for. The resulting aircraft was a conventional single-seat, piston-engined, strut-braced low-wing agricultural airplane.
The Cessna 188 was first flown on 19 February 1965. The aircraft was certified and entered production in February 1966, with 241 aircraft delivered the first year.[2]
The initial design of the Cessna 188 was so successful that over its 17-year production run the basic airframe remained unchanged. Only the engines and the agricultural products dispensing systems were upgraded, other than some minor changes to the ventilation systems The main use for the Cessna 188 series was for agricultural purposes, but many examples were later acquired for use as glider and sailplane tugs.
A total of 3976 Cessna 188s of all four variants were built during its production run, made up of 53 AGpickups, 1589 AGwagons, 1949 AGtrucks and 385 AGhuskies.
Variants
- 188 AGwagon 230
- Initial version powered by a Continental O-470-R 230 hp (172 kW) powerplant, a 200 US gallon (760 liter) chemical hopper, with a normal category gross weight of 3,300 lb (1,497 kg) and 3,800 lb (1,724 kg) in the restricted category. Certified on 14 February 1966.
- 188A AGwagon "A"
- Powered by a Continental O-470-R 230 hp (172 kW) powerplant, a 200 US gallon (760 liter) chemical hopper, with a normal category gross weight of 3,300 lb (1,497 kg) and 3,800 lb (1,724 kg) in the restricted category. Certified on 26 September 1969.
- 188A AGwagon "B"
- Powered by a Continental O-470-R 230 hp (172 kW) powerplant, a 200 US gallon (760 liter) chemical hopper, with a normal category gross weight of 3,300 lb (1,497 kg) and 3,800 lb (1,724 kg) in the restricted category. Certified on 26 September 1969
0
KmCeiling
0
KmCombat RANGE
0
Km/hAircraft Speed
0
Max Crew

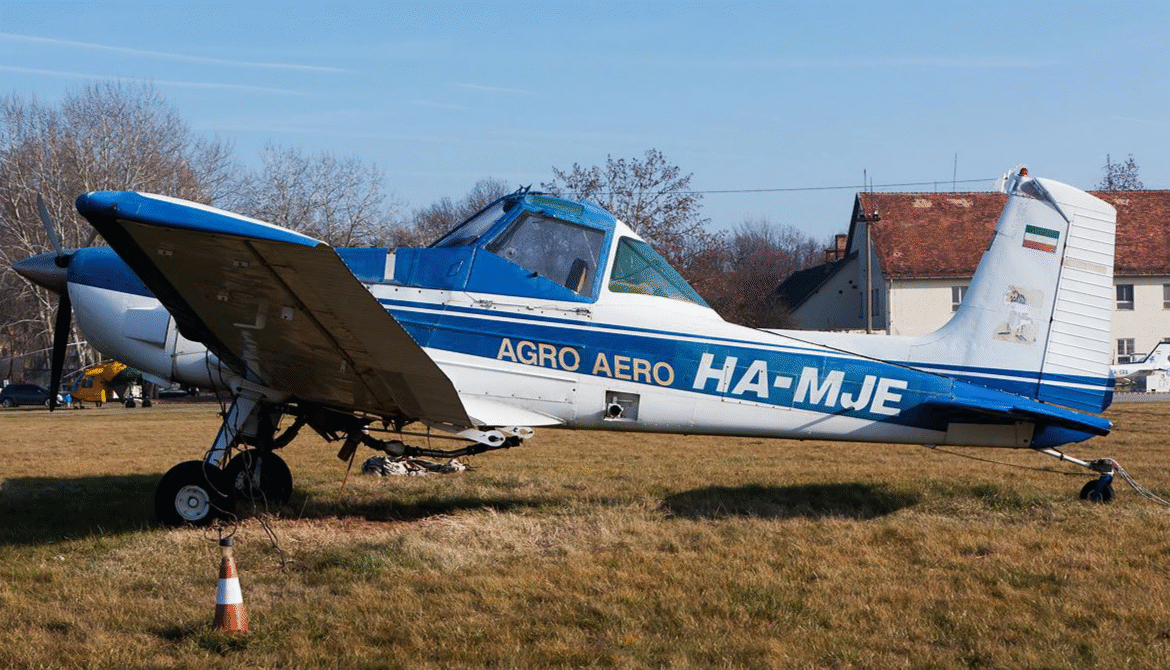

Photo Gallery
Cessna Aircraft Company
Cessna 188 AG Wagon Series Agricultural
Manufactured 1966–1983
Introduction date 1966
First flight February 19, 1965
Cessna Aircraft Company
Cessna 188 AG Wagon Series Agricultural
General Info
-
-
- Crew: 1
- Capacity: Hopper: 280 US gal (230 imp gal; 1,100 L)
- Length: 26 ft 3 in (8.00 m)
- Wingspan: 41 ft 8 in (12.70 m)
- Height: 7 ft 8+1⁄2 in (2.350 m)
- Wing area: 205 sq ft (19.0 m2)
-
Powerplant
- Max takeoff weight: (1,905 kg)
- Fuel capacity: (47 imp gal; 210 L)
- Powerplant: 1 × Continental IO-520-D air-cooled flat-six, 300 hp (220 kW)
- Propellers: 2-bladed McCauley metal constant-speed propeller
-
-
Performance
- Maximum speed: (195 km/h
- Cruise speed:(182 km/h, (75% power)
- Stall speed: 57 mph (92 km/h, 50 kn) (with full flaps) (CAS)
- Range:(475 km, 256 nmi)
- Service ceiling:(3,400 m)
.
