Gothaer Waggonfabrik Horten H.IX, Ho 229


General information
Type Fighter/bomber
Manufacturer Gothaer Waggonfabrik
Designer Horten brothers
Primary user Luftwaffe
Number built 3
History
First flight 1 March 1944 (glider)2 February 1945 (powered)
.
History Gothaer Waggonfabrik
 Horten H.IX, Ho 229
First flight 1 March 1944, 2 February 1945 (powered)



he Ho 229 Was Designed In Response To A Call By Hermann Göring, The Head Of The Luftwaffe, In 1943 For Light Bombers Capable Of Meeting The "3×1000" Requirement; Namely, To Carry 1,000 Kilograms (2,200 Lb) Of Bombs A Distance Of 1,000 Kilometres (620 Mi) With A Speed Of 1,000 Kilometres Per Hour (620 Mph). Only Jet Propulsion Could Achieve The Required Speed, But Such Engines Were Relatively Primitive And Very Fuel-Hungry, Necessitating Considerable Effort Across The Rest Of The Design To Satisfy The Range Requirement. The Flying Wing Configuration Was Favoured By The Horten Brothers Due To Its High Aerodynamic Efficiency, As Demonstrated By Their Horten H.IV Glider. In Order To Minimise Drag, The Ho 229 Was Not Fitted With Extraneous Flight Control Surfaces. Its Ceiling Was 15,000 Metres (49,000 Ft). The Ho 229 Was The Only Design That Even Came Close To The Requirements, And The Horten Brothers Quickly Received An Order For Three Prototypes After The Project Garnered Göring's Approval.

Variants

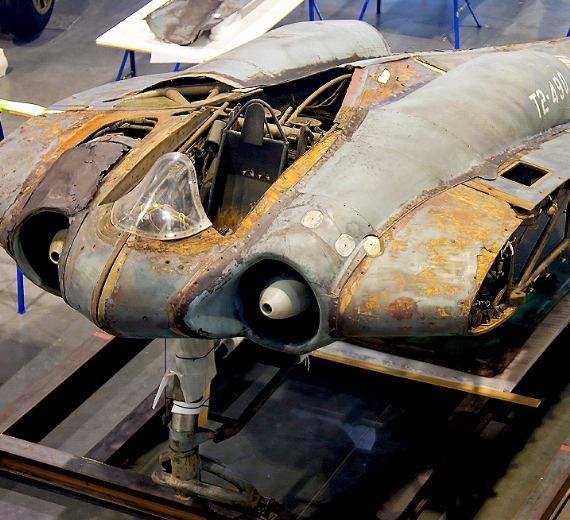

Horten Ho 229 V3 prototype at the Smithsonian's Garber restoration facility (National Air and Space Museum)
Rear view of Horten Ho 229 prototype
H.IX V1
First prototype, an unpowered glider, one built and flown (three-view drawing below).
H.IX V2
First powered prototype, one built and flown with twin Junkers Jumo 004B engines.

Gotha developments:

Ho 229 V3
Revised air intakes, engines moved forward to correct longitudinal imbalance. Its nearly completed airframe was captured in production, with two Junkers Jumo 004B jet engines installed in the airframe.
Ho 229 V4
Planned two-seat all-weather fighter, in construction at Friedrichroda, but not much more than the center-section's tubular framework completed.
Ho 229 V5
Planned two-seat all-weather fighter, in construction at Friedrichroda, but not much more than the center-section's tubular framework completed.
Ho 229 V6
Projected definitive single-seat fighter version with different cannon, one captured in production at Ilmenau by US troops.

Horten developments:

H.IXb (also designated V6 and V7 by the Hortens)
Projected two-seat trainer or night-fighter; not built.
Ho 229 A-0
Projected expedited production version based on Ho 229 V6; not built.


0

Km

Ceiling

0

Km

Combat RANGE

0

Km/h

Aircraft Speed

0

Max Crew

Gallery

Photo Gallery
Gothaer Waggonfabrik
 Horten H.IX, Ho 229
First flight 1 March 1944, 2 February 1945 (powered)

gallery
gallery
gallery
element
element
Gothaer Waggonfabrik GWF

Gothaer Waggonfabrik GWF
Horten H.IX, Ho 229
First flight 1 March 1944, 2 February 1945 (powered)

1

General Info

  •
      • Crew: 1
      • Length: 7.4 m (24 ft 3 in) chord at centre-line
        • Ho 229A: 7.47 m (24.5 ft)
        • Wingspan: 16.8 m (55 ft 1 in)
        Ho 229A: 16.76 m (55.0 ft)
        • Height: 1.1 m cockpit height
        Ho 229A: 2.81 m  overall height
2

Powerplant


      • Empty weight: 4,844 kg
        • Ho 229A: 4,600 kg
        • Max takeoff weight: 6,876 kg
        Ho 229A: 8,100 kg (17,900 lb)
plane
3

Performance

  • Maximum speed: 960 km/h (600 mph
    • Ho 229A: 950 km/h (590 mph; 510 kn) / M0.77 at sea level; 977 km/h (607 mph; 528 kn) / M0.92 at 12,000 m
    Cruise speed: 900 km/h (560 mph,
    • Never exceed speed: 1,000 km/h
    • Take-off speed: 150 km/h
    • Landing speed: 130 km/h
    • Range: 1,900 km (1,200 mi, maximum
4

Armament

.
Special Links Hamburger Flugzeugbau

Links to Youtube & Others

During the early 1930s, the Horten brothers had become interested in the flying wing configuration as a method of improving the performance of gliders.

Gothaer Waggonfabrik Horten H.IX, Ho 229

n 1983, Reimar Horten stated that he intended to mix charcoal dust in with the wood glue to absorb electromagnetic waves (radar),

interior

Youtube Link

A jet-powered flying wing design such as the Horten Ho 229 has a smaller radar cross-section (RCS) than conventional contemporary twin-engine aircraft because the wings blended into the fuselage and there are no large propeller disks or vertical and horizontal tail surfaces to provide a typical identifiable radar signature
