Grob G 120TP
Role	Trainer
National origin	Germany
Manufacturer	Grob Aircraft
First flight	2010
Introduction	2013
Status	In production

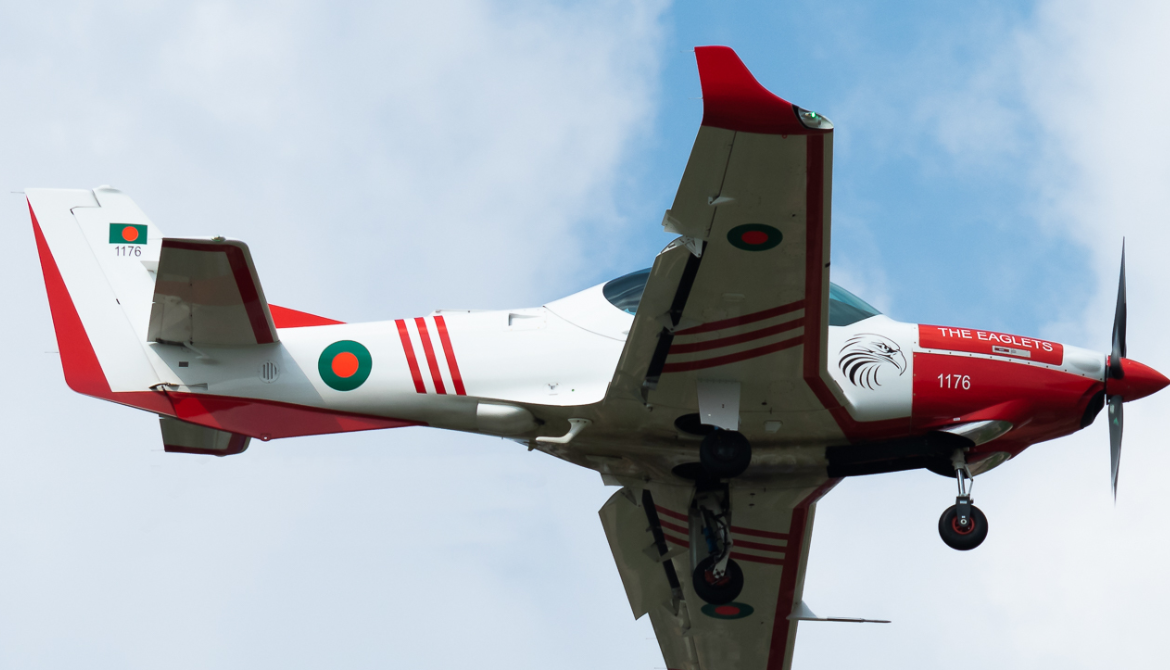

Primary users	Indonesian Air Force Mexican Air Force Bangladesh Air Force UK Military Flying Training System Swedish Air Force
Produced	2010-present
Developed from	Grob G 120

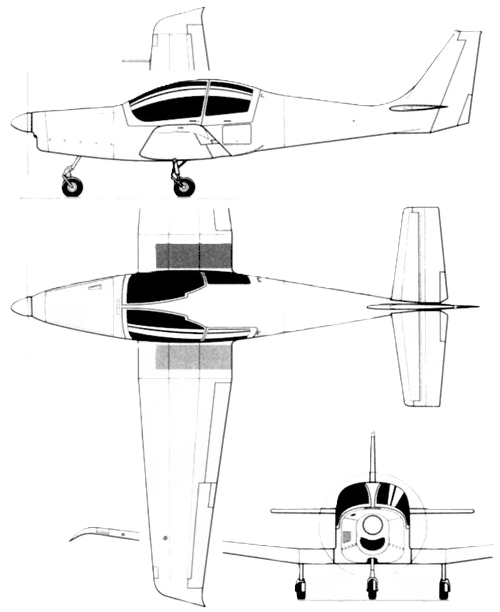

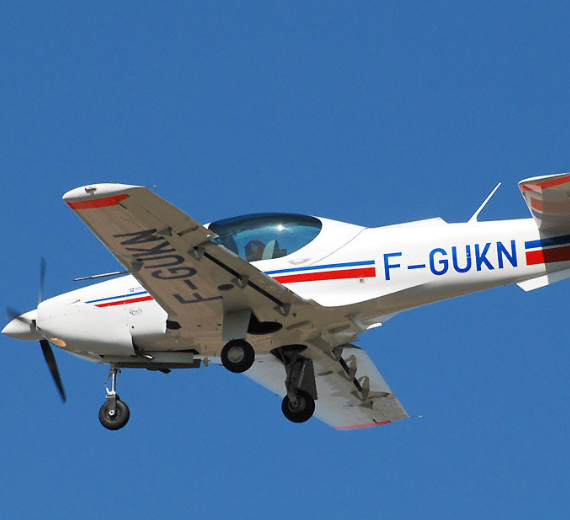

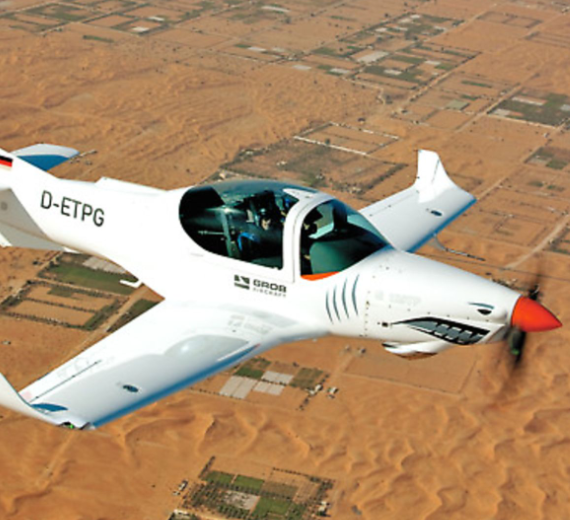

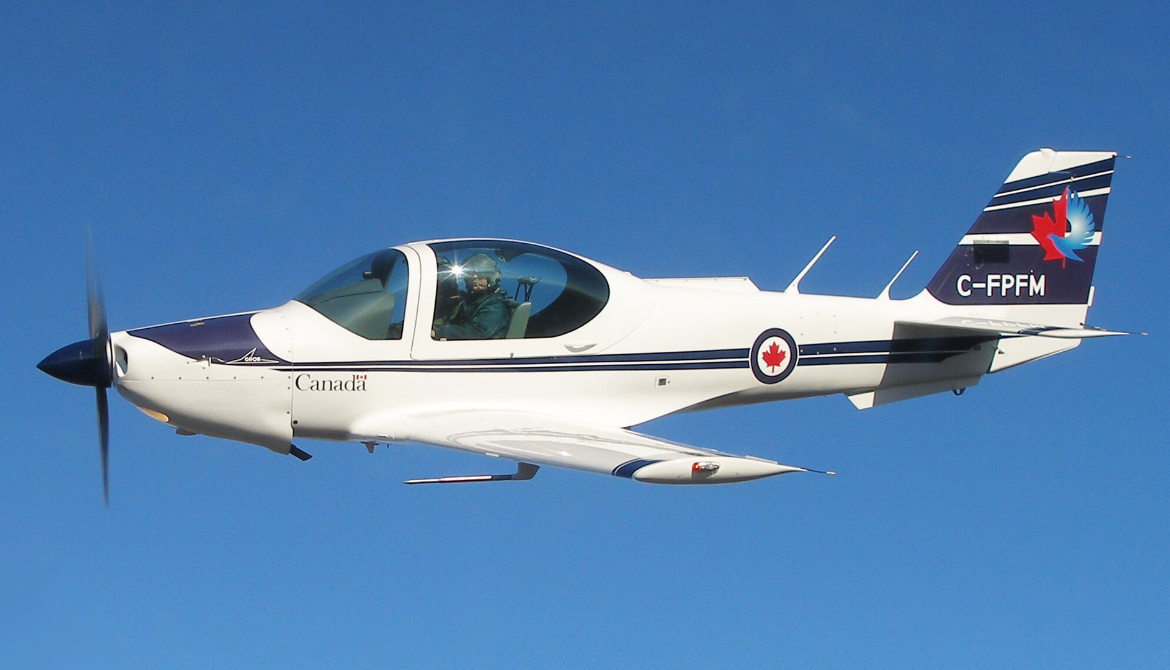

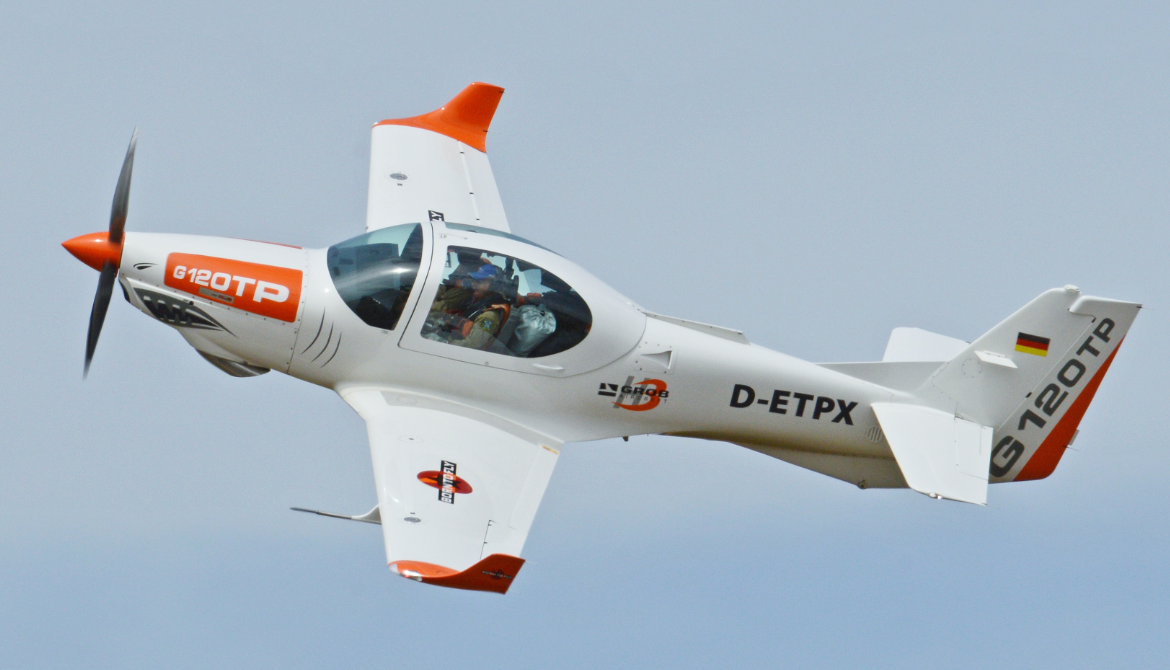

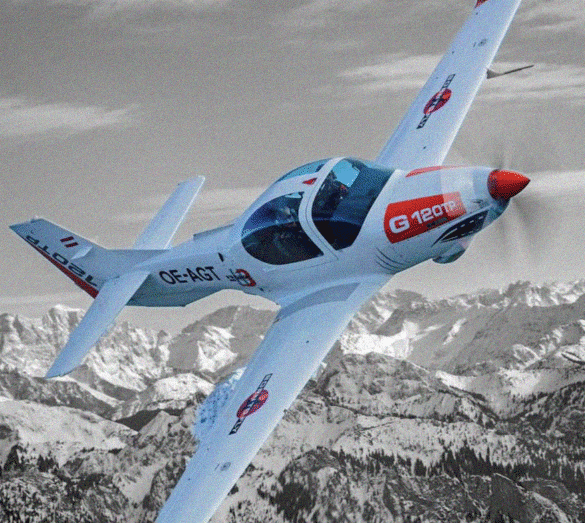

The Grob G 120TP is a two-seat turboprop training and aerobatic low-wing aircraft with a composite airframe, built by Grob Aircraft. It is based on the Grob G 120A training aircraft and has been developed for military and civil pilots training. It has a retractable tricycle landing gear and a low tailplane.

Designed to be a further development of the G 120A, the G 120TP turned during the development process into a nearly new type of aircraft. Due to the new powertrain, the G 120TP offers new capabilities for basic and advanced pilot training, where it can be used as a lead-in for a jet trainer. The airframe is made of fiberglass reinforced plastic and is stressed to +6/-4g. The wings are made of carbon fibre composites with winglets. The cockpit provides room for students and teachers wearing military equipment and helmets. The HOTAS control system is similar to that found in other types of aircraft that students may fly later in their careers..

Variants

Grob Aircraft, formerly Grob Aerospace

Grob Aircraft, formerly Grob Aerospace
Grob G 120TP Trainer

General Info

Crew: one
Capacity: one passenger
Length: 8.4 m (27 ft 7 in)
Wingspan: 10.3 m (33 ft 10 in)
Height: 2.7 m (8 ft 10 in)
Wing area: 13.5 m² (145 sq ft)

Powerplant

Empty weight: 1,095 kg Max takeoff weight: 1,590 kg Fuel capacity: 360 litres Powerplant: 1 × Rolls-Royce M250-B17F Turboprop aircraft engine, 340 kW (456 hp) Propellers: 5-bladed MT Propeller, 2.1 m (6 ft 11 in) diameter

Performance

Maximum speed: 454 km/h (282 mph, 245 kn)
Cruise speed: 435 km/h (270 mph, 235 kn) (at MCP, 10,000 ft)
Stall speed: 107 km/h (67 mph, 58 kn) (MSL, landing configuration)
Range: 1,070 km (670 mi, 580 nmi) at 5,000 ft and 75% power
Ferry range: 1,361 km (846 mi, 735 nmi)
Endurance: 6 hours at 10,000 ft and maximum endurance power setting
Service ceiling: 7,600 m

Related development

Special Links Grob Aircraft, formerly Grob Aerospace Grob G 120TP Trainer

Links to Youtube & Others

The G 120TP is certified to latest airworthiness standards and features enhanced aerodynamic performance, future oriented flexible avionics, including both civil and military communication and navigation systems, providing excellent situational awareness and safety features.

Grob G 120TP Trainer

The Grob G 120TP is a twin seat turboprop training aircraft with side-by-side seating and full aerobatic capability..
