NB-52B Stratofortress "Balls8"
Produced 1952–1962
Number Built 744

Top

General Info

Boeing Military

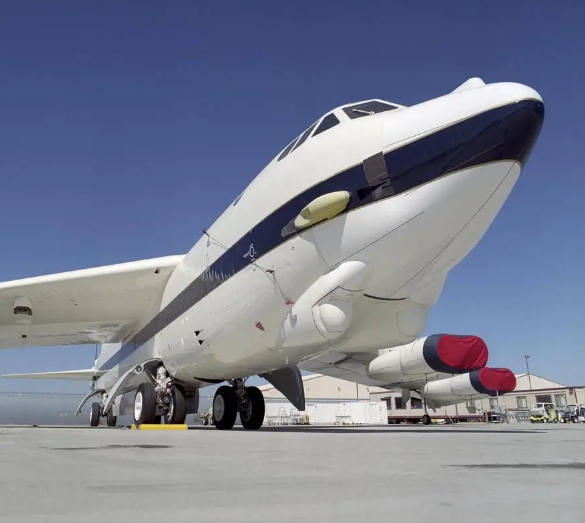

NB-52B "Balls 8"

General information Type Boeing NB-52B Stratofortress Manufacturer Boeing Aircraft Company Status Retired Owners United States Air Force NASA Serial 52-008 History First flight 11 June 1955 Preserved at Edwards Air Force Base, California

.

History Boeing Military
Boeing NB-52B Stratofortress "Bals8"
Produced 1952–1962 Number Built 744


The Boeing B-52 Stratofortress is an American long-range, subsonic, jet-powered strategic bomber. The B-52 was designed and built by Boeing, which has continued to provide support and upgrades. It has been operated by the United States Air Force (USAF) since the 1950s. The bomber can carry up to 70,000 pounds (32,000 kg) of weapons, and has a typical combat range of around 8,800 miles (14,200 km) without aerial refueling.

Balls 8

Because of the B-52's mission parameters, only modest maneuvers would be required with no need for spin recovery. The aircraft has a relatively small, narrow chord rudder, giving it limited yaw control authority. Originally an all-moving vertical stabilizer was to be used but was abandoned because of doubts about hydraulic actuator reliability. Because the aircraft has eight engines, asymmetrical thrust due to the loss of an engine in flight would be minimal and correctable with the narrow rudder. To assist with crosswind takeoffs and landings the main landing gear can be pivoted 20 degrees to either side from neutral. The crew would preset the yaw adjustable crosswind landing gear according to wind observations made on the ground.Wiki Link

0

Km

Ceiling

0

Km

Range

0

Mach

Aircraft Speed

0

Max Crew

Gallery

 Photo Gallery
Boeing NB-52B Stratofortress "Balls8"
Produced 1952–1962 Number Built 744

Boeing BCA Militaryl

Boeing Military Airplanes
Boeing NB-52B Stratofortress "Balls8"
Produced 1952–1962 Number Built 744

1

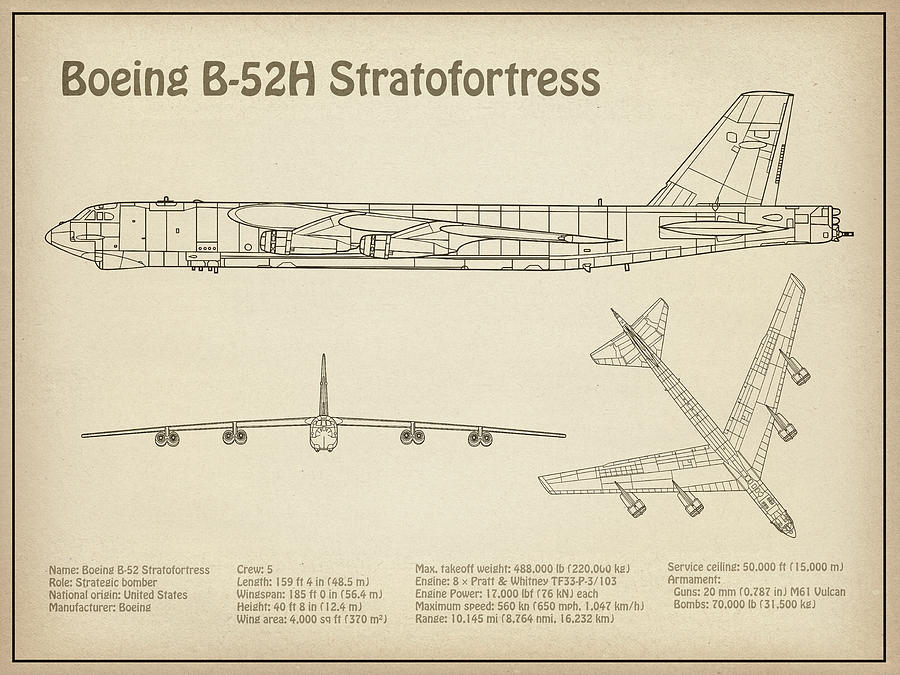

General characteristics

• Crew: 5 (pilot, copilot, weapon systems officer, navigator, electronic warfare officer)
• Length: 159 ft 4 in (48.5 m)
• Wingspan: 185 ft 0 in (56.4 m)
• Height: 40 ft 8 in (12.4 m)
• Wing area: 4,000 sq ft (370 m²)

2

Powerplant

• Empty weight:  (83,250 kg)
• Gross weight: (120,000 kg)
• Max takeoff weight:  (221,323 kg)
• Fuel capacity: 47,975 U.S. gal
• Zero-lift drag coefficient: 0.0119
• Drag area: 47.60 sq ft (4.42 m²)
• Aspect ratio: 8.56
• Powerplant: 8 × Pratt & Whitney TF33-P-3/103 turbofans, 17,000 lbf (76 kN) thrust each

3

Specifications

• Maximum speed: 650 mph (1,050
• Cruise speed: 509 mph (819 km/h,
  Combat range:  (14,200 km,
• Ferry range: (16,327 km,
• Service ceiling: (15,000 m)
• Rate of climb: 6,270 ft/min (31.85 m/s)
• Wing loading: 120 lb/sq ft (586 kg/m²)

4

Related development

• Guns: 1× 20 mm (0.787 in) M61 Vulcan cannon originally mounted in a remote-controlled tail turret on the H-model, removed in 1991 from all operational aircraft.
• Bombs: Approximately 70,000 pounds (32,000 kg) mixed ordnance; bombs, mines, missiles, in various configurations.

Special Links Boeing Millitary Airplanes
NB-52B Stratofortress "Bals8"

Links to Youtube & Others

The ability to carry up to 20 AGM-69 SRAM nuclear missiles was added to G and H models, starting in 1971. To further improve its offensive ability, air-launched cruise missiles (ALCMs) were fitted.

Boeing NB-52B Stratofortress "Balls8"

During ground testing on 29 November 1951, the XB-52's pneumatic system failed during a  test.

Youtube Link

In September 2006, the B-52 became one of the first US military aircraft to fly using alternative fuel. It took off from Edwards Air Force Base.
